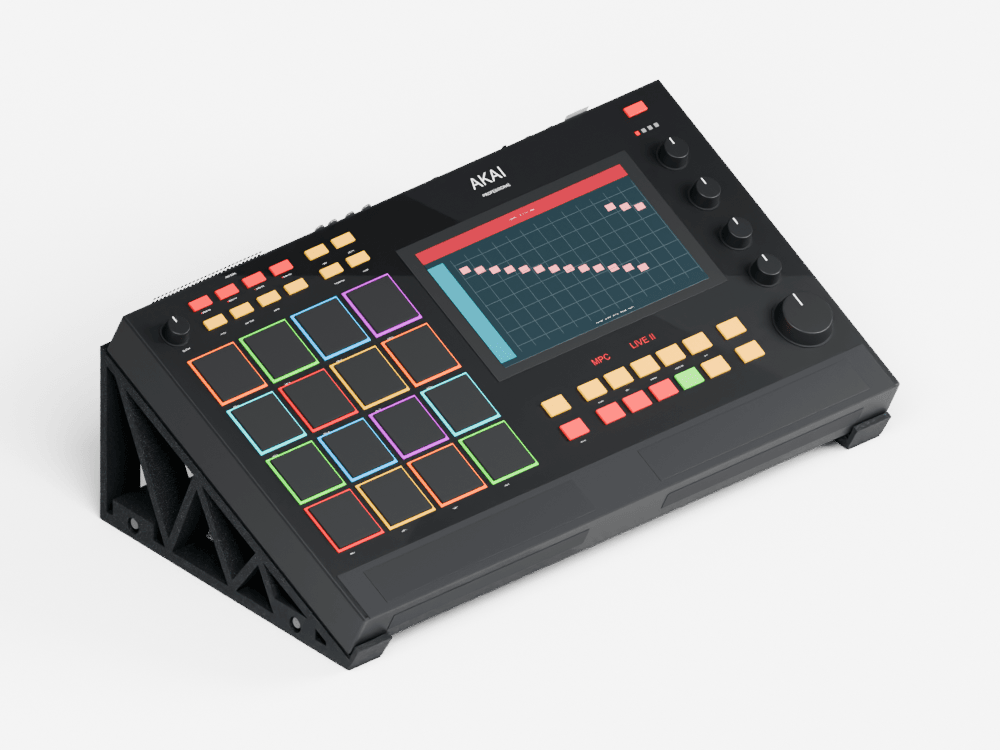

P01 draft with reconstructed MPC Live II
MPC Live II stand
Akai MPC Live II
€69
Includes VAT where applicable. Free delivery.

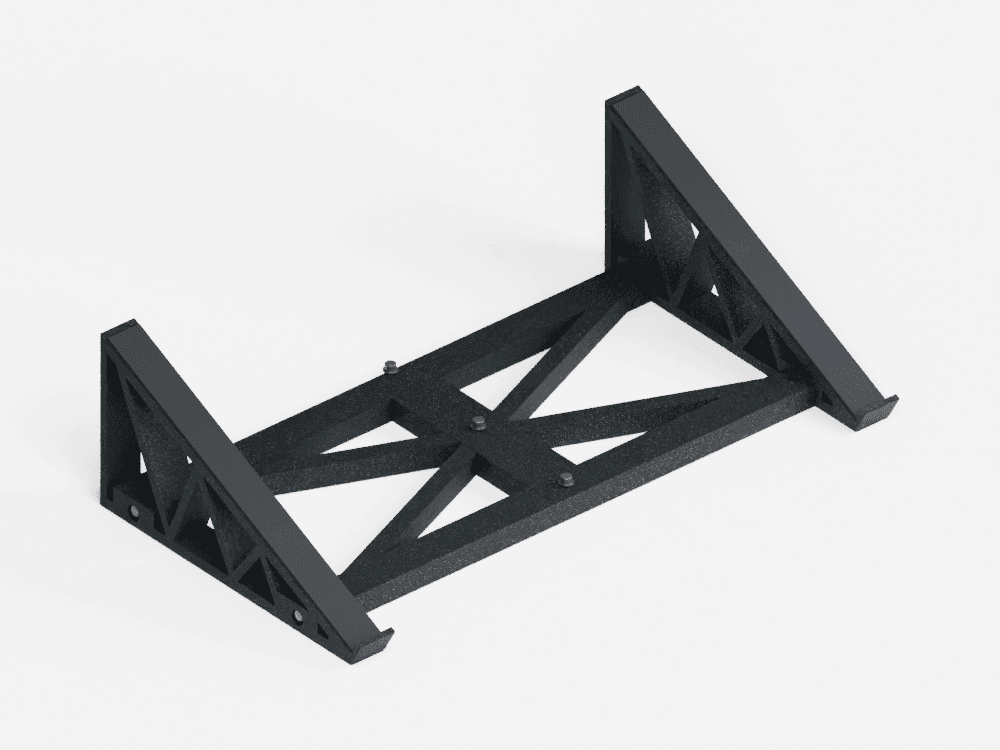

A 26.2° wedge for the 3.38 kg Live II. Four printed parts — two side panels and a cross-frame split into two lapped halves — bolted with four M4 × 35 screws through the sides and three M4 × 16 down the centre spine.
Compatibility
Designed from the measured dimensions of: Akai MPC Live II (411.5 × 243.8 × 45.7 mm, 3.38 kg)
Not designed for: MPC Live (original) · MPC Live III and Live III Retro · MPC X · MPC One, One+, One G2
If it does not fit, we refund the stand and your return postage.

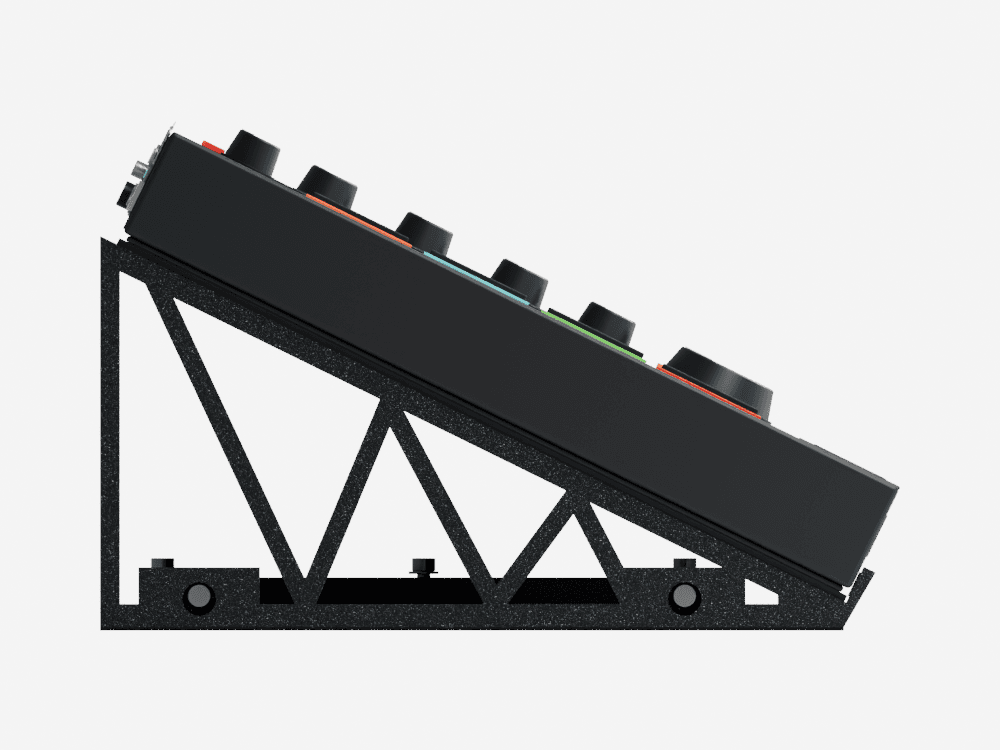

26.2° incline · 408.5 mm across the panels · 382.5 mm between rail centres
Three reasons a wedge is worth the desk space
- You can see the screen without leaning
- A flat machine on a desk points its display at your chest. Tilting it puts the screen normal to your eyeline from a seated position, which is the difference between glancing at a parameter and stopping to read it.
- Your wrist stops bending backwards
- Playing pads on a flat desk holds the wrist in extension for the length of a session. Raising the front edge and angling the deck lets the hand sit closer to neutral, the way a sloped keyboard does.
- The cables stop fighting the desk
- Lifting the rear off the surface gives every rear connector a straight run instead of a sharp bend at the socket, and puts air under a machine that is otherwise sitting in its own heat.
Measurements and load path
Drawn from Thomann's archived listing for the Live II: 411.5 × 243.8 × 45.7 mm, 3.38 kg. The four square rubber feet are read from Thomann's underside photograph at about ±162 mm and 31 / 214 mm from the front edge, roughly 27 mm square, with about 2 mm of reading error.
- Incline
- 26.2°
- Rail centres
- 382.5 mm
- Outside width
- 408.5 mm
- Front stop
- 12 mm above rail
- Panel thickness
- 26 mm
- Rail cushion
- 24 × 243.8 × 2 mm
- Desk grip strips
- 1 mm
- Printed parts
- 4
Where the weight lands
This is the engineering claim worth reading twice. The Live II's feet sit at about ±162 mm; the cushioned rails sit at ±191 mm, outboard of every one of them. The stand therefore bears on the flat base plate near the edge of the chassis, not on four rubber feet — which is why a 3.38 kg machine does not rock when you play it.
What the stand does not cover

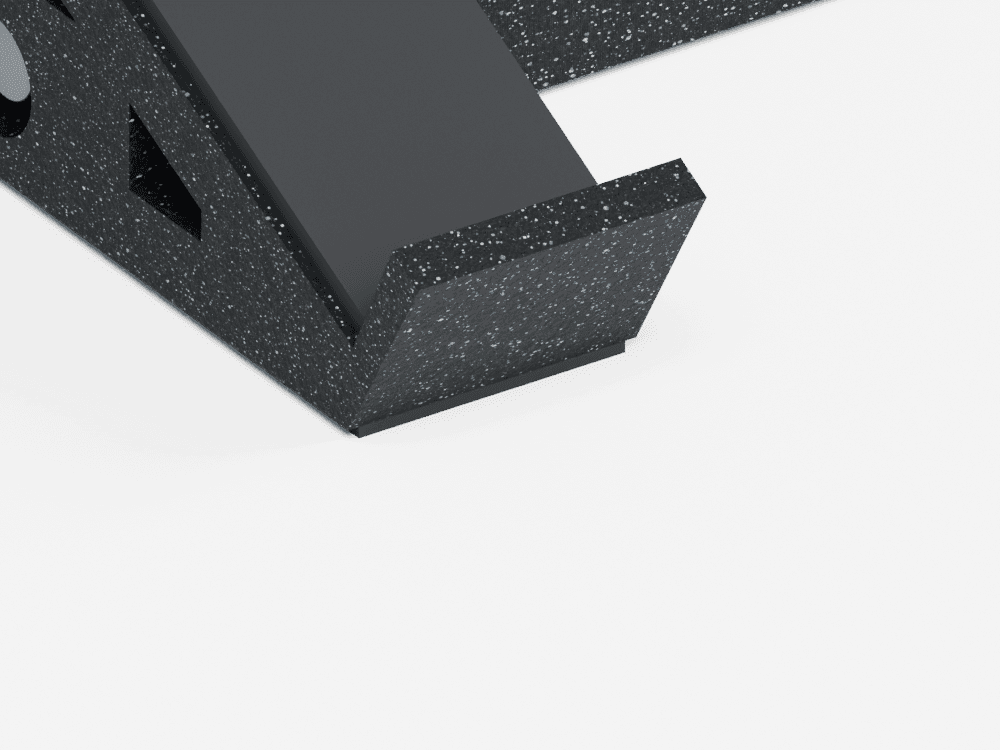

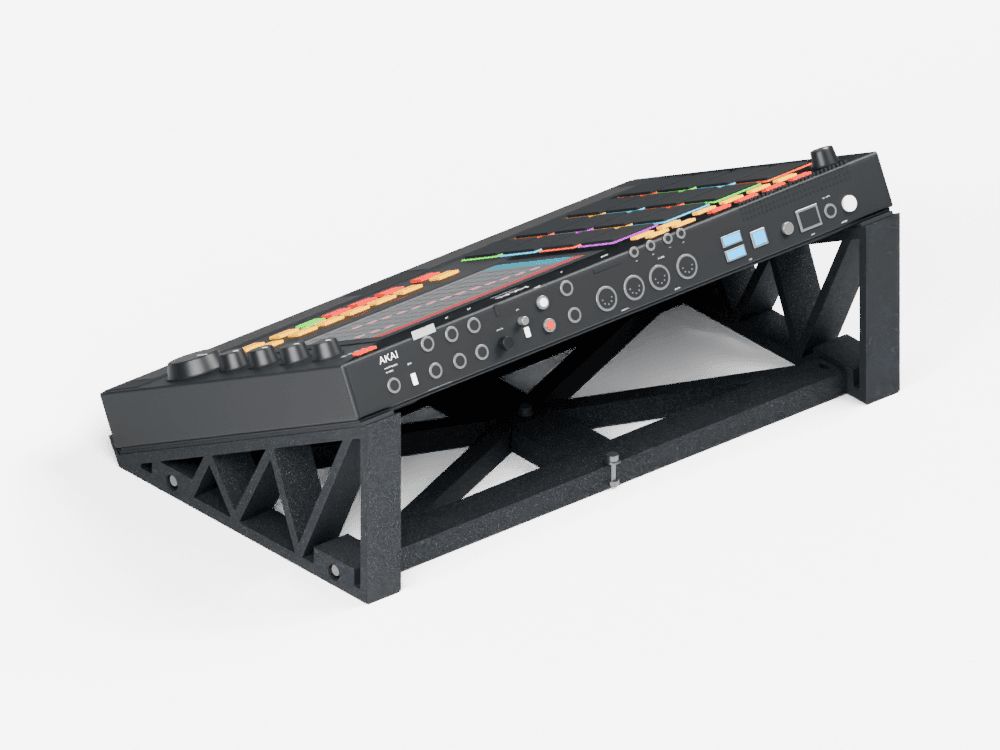

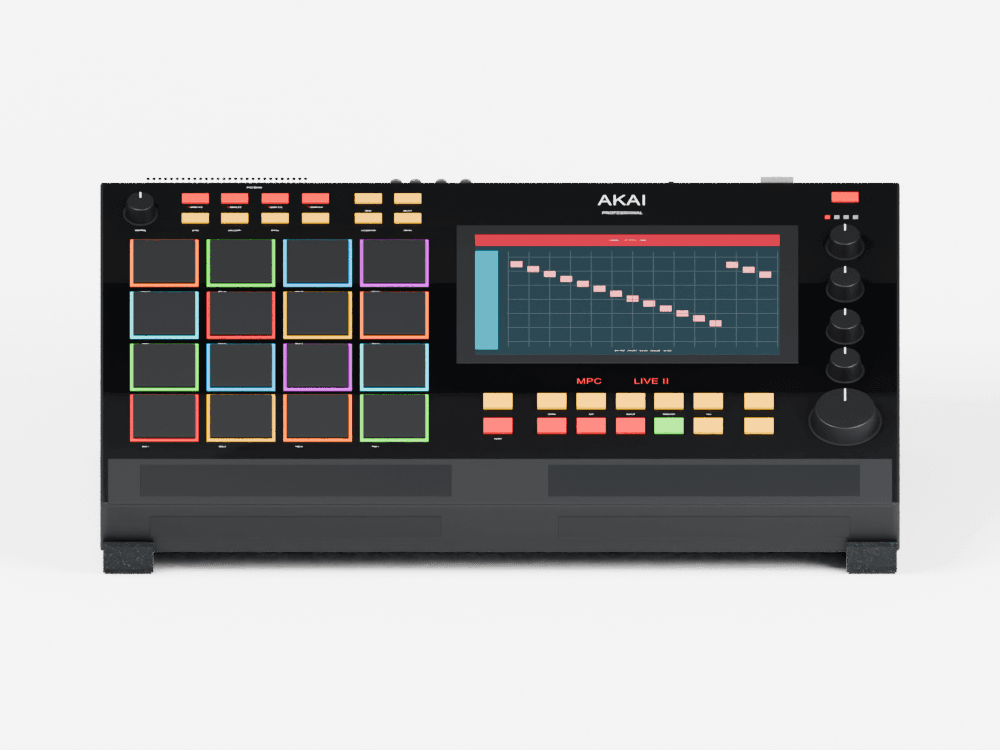

The rails stop at the rear edge of the chassis and the cross-frame sits below it, so the whole rear connector bank stays open with the unit tilted. The perforated speaker face at the front sits above the 12 mm lips.
In the box

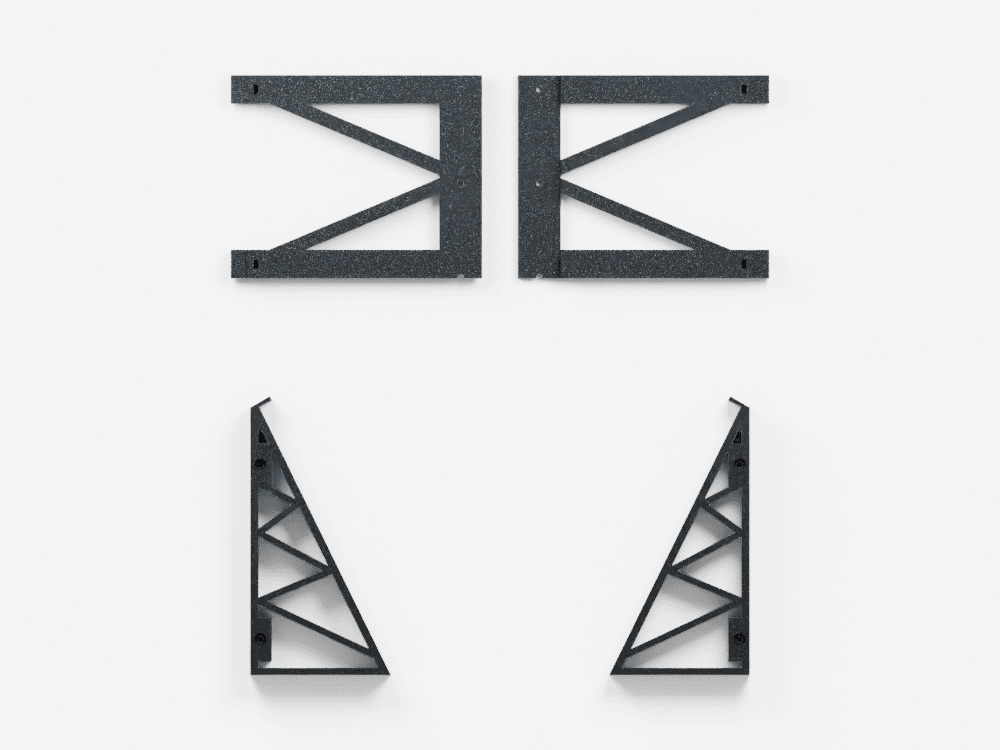

- 1×Left side panel, printed and finished
- 1×Right side panel, printed and finished
- 1×Cross-frame, left half
- 1×Cross-frame, right half
- 4×M4 × 35 socket-head screws, for the side joints
- 3×M4 × 16 socket-head screws, for the centre lap joint
- 7×M4 nuts
- 7×M4 washers (9 mm outside diameter, 0.8 mm)
- 2×Protective rail strips, 24 × 243.8 × 2 mm
- 2×Front stop bumpers
- 2×Desk grip strips, 1 mm
Device not included. The Akai MPC Live II in the photographs is a CAD reconstruction.
Assembly

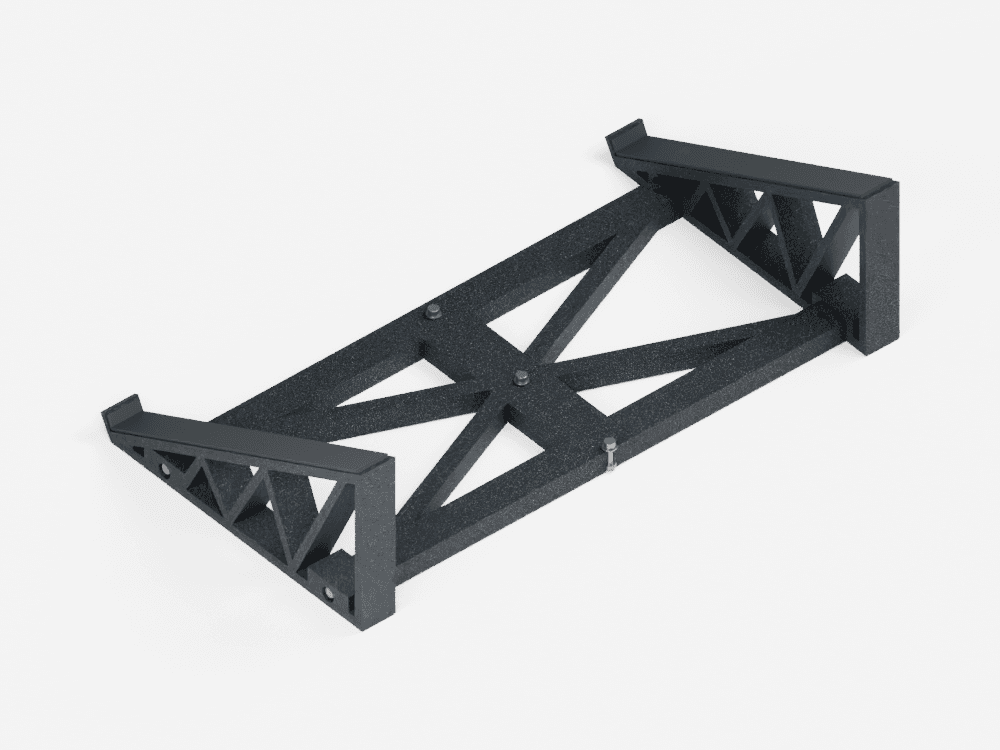

- 1Lap the two cross-frame halves together at the 36 mm centre spine and drop an M4 nut into each of the three vertical slots.
- 2Fit a washer and an M4 × 16 screw into each of the three spine holes and tighten. The bolt tips finish about 0.2 mm below the frame, and the 1 mm desk strips clear them.
- 3Lay the two side panels inside-face up. They are handed — the joint mortises face each other.
- 4Drop an M4 nut into the captive slot beside each of the four side joints.
- 5Slide the four tongues of the assembled cross-frame into the panel mortises. 14 mm of engagement, 0.25 mm clearance a side.
- 6Fit a washer and an M4 × 35 screw into each recess and tighten evenly.
- 7Lay a rail strip along the top of each rail, front edge flush, and stick a stop bumper to the inside face of each front stop.
- 8Turn the stand over, apply a desk grip strip to the underside of each panel, and set it down.
Specification
- Device envelope
- 411.5 × 243.8 × 45.7 mm
- Device mass
- 3.38 kg
- Stand incline
- 26.168°
- Structural parts
- 4, printed
- Fasteners
- Standard M4, supplied
- Finish
- Stone-flecked paint, hand-applied
- CAD revision
- P01 (mpc-live-ii-p01)
- Device included
- No
Shipping and returns
Stands ship flat-packed with the hardware and cushions in the same box. Assembly takes about five minutes and needs one hex key.
You have fourteen days from delivery to change your mind, for any reason, and we pay return postage if the stand does not fit your machine. That promise is the risk reversal for a product whose only real objection is fit — and it is the reason the list above is honest.
Common questions
- Why does the cross-frame come in two pieces?
- Because a 408 mm frame does not fit on a 256 mm print bed, and we would rather lap and bolt two honest halves than scale a part down until it fits. The spine is 36 mm wide with three M4 bolts through it.
- Does it press on the rubber feet?
- No — the opposite. The rails run outboard of all four feet and bear on the base plate near the chassis edge. The feet hang free.
